Procedure Time, Efficacy, and Safety of Portal Vein Embolisation Using a Sheathless Needle-Only Technique Compared with Traditional Technique

Hong Kong J Radiol 2022 Mar;25(1):35-44





¹ Department of Radiology and Nuclear Medicine, Tuen Mun Hospital, Hong Kong

² Department of Imaging and Interventional Radiology, Prince of Wales Hospital, Hong Kong

³ Department of Imaging and Interventional Radiology, The Chinese University of Hong Kong, Hong Kong

⁴ Vascular and Interventional Radiology Foundation Clinical Science Centre, The Chinese University of Hong Kong, Hong Kong



  Full Article in PDF

Portal vein embolisation (PVE) is an interventional radiology procedure first reported in 1986 as an alternative to open PV ligation.[1] It is performed prior to hepatic resection for primary or secondary malignancy to increase the size of future liver remnant (FLR), in patients initially contraindicated for upfront hepatectomy due to borderline liver function or inadequate FLR volume. This is achieved by selective embolisation of PV branches supplying the tumour-bearing hepatic lobe, resulting in increased blood flow to the FLR to induce hypertrophy with a high success rate,[2] [3] [4] along with reduction in postoperative hepatic dysfunction, complications, and an increase in the ability to subsequently perform hepatic resections with curative intent.[5] [6] PVE traditionally involves transhepatic puncture of a segmental or sectoral PV branch, insertion of an access sheath, portography for anatomical delineation and planning, and selective embolisation of PV branches.[7] Various embolic agents including liquid, spherical, particulate agents, and coils have been utilised.[8]



Performing PVE with a simplified sheathless needle-only technique, in which direct portography and glue embolisation are performed via the puncture needle, has been reported to have a high technical success rate and satisfactory FLR hypertrophy.[9] This study aimed to compare the procedure time, efficacy, and safety of PVE with the sheathless technique versus the traditional technique.



Two retrospective patient cohorts were retrieved from two tertiary institutions, one comprised of patients that had undergone the sheathless technique and the other comprised of patients that had undergone the traditional technique (Figure 1). The decision to perform PVE had been made by a multidisciplinary consensus with hepatobiliary surgeons and interventional radiologists in accordance with local guidelines.[10] [11] [12] Ethical approval was waived for the sheathless technique cohort and approved for the traditional technique cohort (NTWC/REC/19133) by their respective institutional review boards. Patient consent was waived due to the retrospective nature of the study.

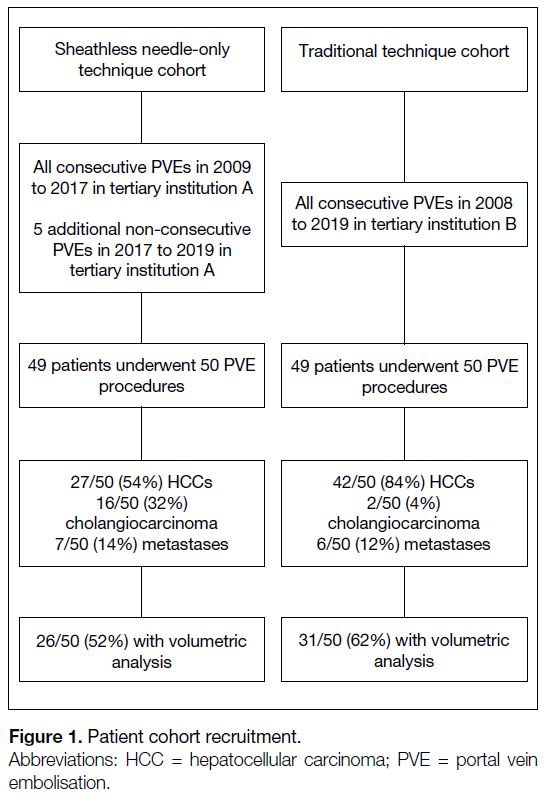

Figure 1. Patient cohort recruitment.



Data collection and reporting was done with reference to the Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) checklist.[13] Patient data were retrieved via the electronic patient record system. These included age, sex, baseline blood test results (sodium, creatinine, alanine transferase, albumin, total bilirubin, international normalised ratio [INR]), tumour type (hepatocellular carcinoma, cholangiocarcinoma, or metastasis), technical success, use of procedural sedation, planned hepatectomy extent (right hepatectomy or trisectionectomy), eventual hepatectomy, and complications. Model for End-stage Liver Disease (MELD) and albumin-bilirubin (ALBI) scores were used as markers of chronic hepatic derangement, and were calculated with their original formulas.[14] [15]



Forty-nine consecutive cases of PVE in 2008 to 2019 were analysed. Traditional PVEs were performed by interventional radiology specialists with 5 to >20 years of experience, in one of two dedicated interventional angiography suites (Allura Clarity, Philips Healthcare, Best, the Netherlands; Artis Q with PURE^®, Siemens Healthcare, Erlangen, Germany).



Under local anaesthesia (1% lidocaine) and using sonographic guidance, a segmental PV branch was located and punctured with a 20-22 G needle (Chiba; Cook Incorporated, Bloomington [IN], US; Inrad, Inc., Kentwood [MI], US). Procedural sedation with fentanyl or midazolam was administered if necessary. The puncture was ipsilateral to the tumour-bearing lobe. Typically, right lobe anterior sectoral branches, which have been shown to be safer and would not violate the FLR, were chosen.[16] Contralateral (left-sided) puncture was performed in cases of markedly distorted anatomy or difficult access of the right PV system. Position was confirmed by free aspiration of venous blood and direct portography (Omnipaque 300; GE Healthcare, Shanghai, China). An access sheath was then inserted via an introducer set (Skater 6 Fr × 18 cm; Argon Medical Devices Inc., Athens [TX], US) or a 4 to 5 Fr vascular sheath (Cook Incorporated, Bloomington [IN], US; Radifocus Introducer II, Terumo Corporation, Tokyo, Japan). Using a 0.035-inch guidewire (0.035-inch Angled Terumo guidewire; Radifocus, Terumo Corporation, Tokyo) and angiographic catheters (4-5 Fr C1; SHK, Rim, MPA etc., Cordis Corporation, Miami Lakes [FL], US), portography was performed to delineate the anatomy (Figure 2). Branches of the right PV were then selectively catheterised and embolised with microcatheters (2.4 Fr Merit Maestro; Merit Medical Systems Inc., South Jordan [UT], US and 2.8 Fr Renegade Hi-Flo; Boston Scientific, Marlborough [MA], US) and a microguidewire (0.014-inch Traxcess; MicroVention Terumo, Tustin [CA], US). The embolic agent of choice was n-butyl-2-cyanoacrylate (Histoacryl; B Braun Surgical S.A., Rubi, Spain) diluted to 10% to 25% in iodised oil (Lipiodol^® Ultra Fluid; Guerbet LLC, Princeton [NJ], US). In a few selected cases, 100- to 300-μm polyvinyl alcohol particles (Contour; Boston Scientific) were employed. The angiographic endpoint was satisfactory occlusion of the selected right PV branches by glue cast or polyvinyl alcohol particles.

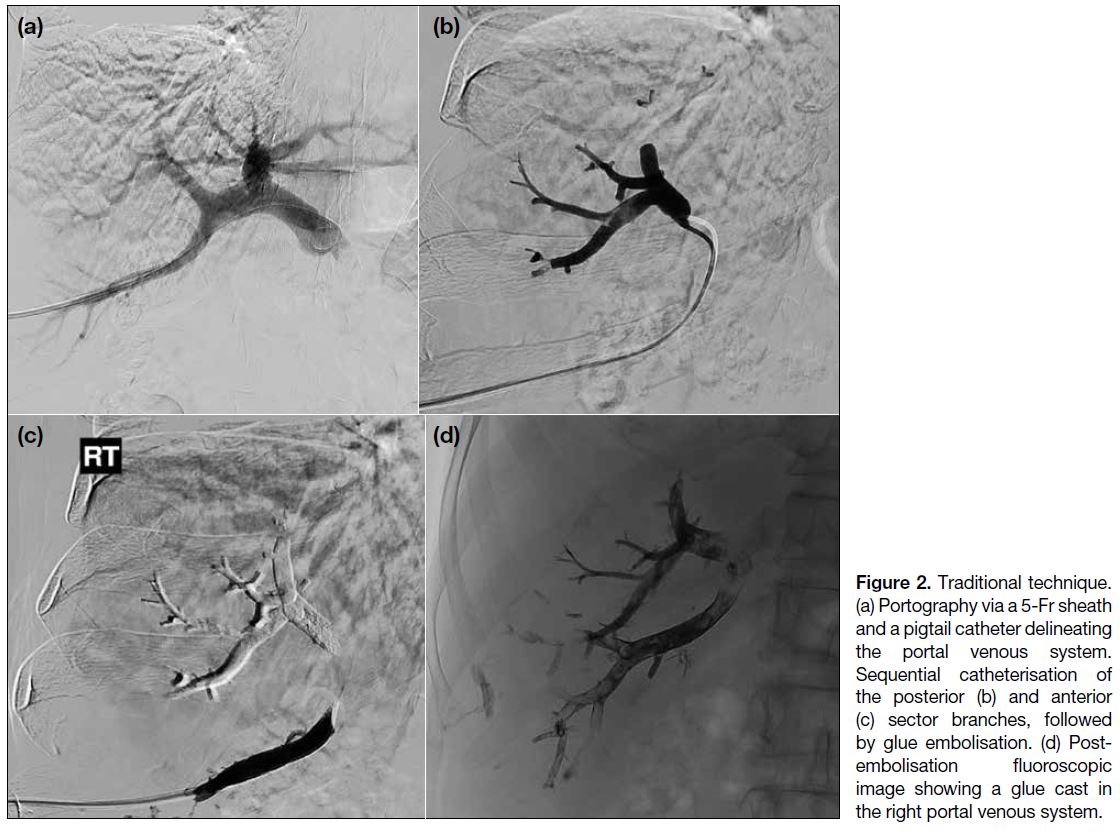

Figure 2. Traditional technique. (a) Portography via a 5-Fr sheath and a pigtail catheter delineating the portal venous system. Sequential catheterisation of the posterior (b) and anterior (c) sector branches, followed by glue embolisation. (d) Post-embolisation fluoroscopic image showing a glue cast in the right portal venous system.



The same 45 consecutive cases of PVE from 2009 to 2017 from our previous study[9] plus five additional cases from 2017 to 2019 were analysed. Full technical details and considerations are as previously described.[9] In brief, a right PV branch, typically segment V/VI, was punctured with a Cook 15 cm 18 G Diamond needle under sonographic guidance, followed by direct portography with iodinated contrast for anatomical delineation, and finally injection of 16% N-butyl cyanoacrylate glue diluted in Lipiodol^® Ultra Fluid all from the same needle under careful manual control of injection rate and fluoroscopy to avoid nontarget embolisation to the FLR (Figure 3). Additional puncture(s) was / were needed in cases with short right PVs (<2 cm), main PV trifurcating into right / left / segment IV branches, or the segment IV branch arising from the right PV. These were performed by a single interventional radiology fellow with >20 years of experience. Intravenous (IV) procedural sedation (single-dose 50 μg IV fentanyl) and cone beam computed tomography (CT) were both used at the operator’s discretion.

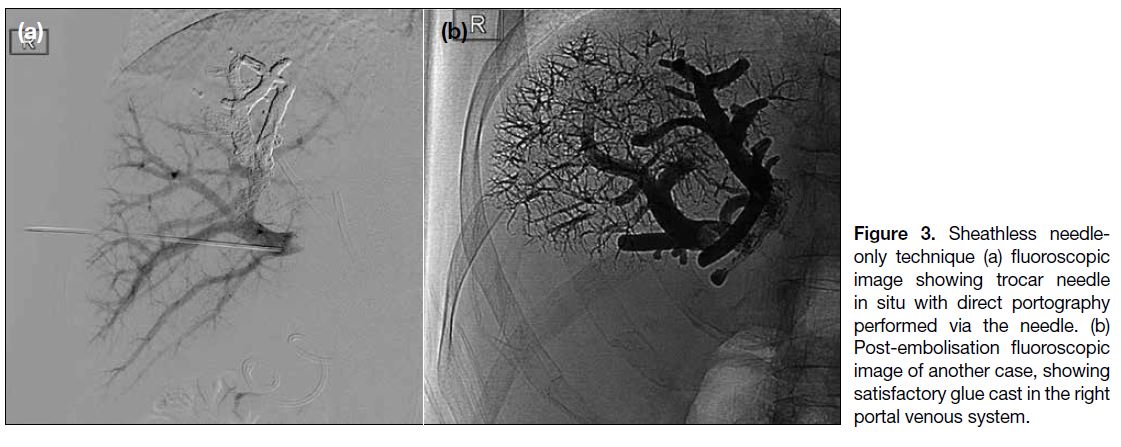

Figure 3. Sheathless needle-only technique (a) fluoroscopic image showing trocar needle in situ with direct portography performed via the needle. (b) Post-embolisation fluoroscopic image of another case, showing satisfactory glue cast in the right portal venous system.



In cases where DICOM data of both pre- and post-PVE CTs were available (Figure 4), volumetric analysis was performed using commercial imaging software (IntelliSpace Portal v5.0.2.30010; Philips Healthcare or OsiriX v7.0.3, Pixmeo, Bernex, Switzerland) on 5 mm sections by two radiology fellows with 5 and 9 years of experience in liver volumetry, respectively. The latest pre-PVE CT and post-PVE CT, typically 4 weeks before and 4 to 6 weeks after PVE, were used for volumetric analysis. Hepatic segments were defined according to the Couinaud classification. Since segment I is usually partially or completely resected during hepatectomy, FLR refers to segments II-IV for right hepatectomy candidates, and to segments II/III for right trisectionectomy candidates. The percentage of FLR volume (%FLRV) is defined as [FLRV × 100%/(total liver volume - tumour volume)]. Tumour volume was included except for infiltrative or ill-defined tumours.

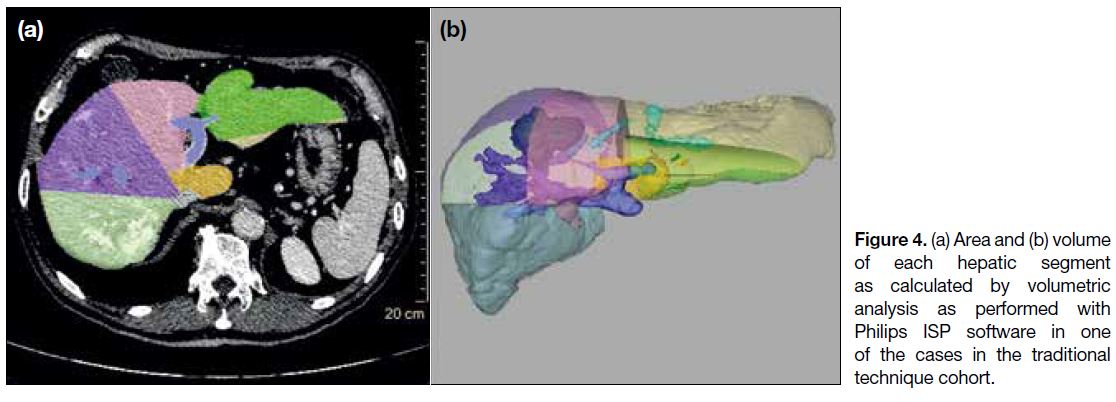

Figure 4. (a) Area and (b) volume of each hepatic segment as calculated by volumetric analysis as performed with Philips ISP software in one of the cases in the traditional technique cohort.



Primary outcome was procedure time, defined as time elapsed from the first to the final angiographic runs, plus time taken for sonographic evaluation, universally assumed to be 10 minutes. Secondary outcomes included technical success, use of procedural sedation, degree of FLR hypertrophy, resection rate, and complications. Technical success was defined as satisfactory occlusion of right PV branches by glue cast.



Use of procedural sedation was defined as any use of any IV sedation agents, regardless of dose.



The degree of FLR hypertrophy was assessed by the absolute increase in FLRV, absolute increase in %FLRV, and percentage increase of %FLRV after PVE. The resection rate was the proportion of patients eventually undergoing hepatectomy. Staged hepatectomy was performed in patients with satisfactory FLR hypertrophy or improvement in liver function tests, and delayed or cancelled in patients with inadequate FLR hypertrophy, inadequate liver function, tumour progression, or new contraindications to surgery. Complications were classified according to Society of Interventional Radiology guidelines.[17]



Sample size was calculated with the formula for difference in two independent sample means for our primary outcome (procedure time). The ratio of controls to cases was 1:1. Two-sided significance level (α) and statistical power (1-β) were taken as 0.05 and 80%, respectively. From the previously published series,[9] the mean procedure time and standard deviation (SD) for the sheathless technique was 19.4 ± 15.3 minutes. The most recent 10 cases of PVE with traditional technique performed in 2018 to 2019 were reviewed as a pilot series, with mean procedure time of 84.3 ± 38.1 minutes. The expected difference in means was 64.9 minutes. However, we consider a 50% decrease in procedure time with the sheathless technique (42 min) to be clinically meaningful. The required sample size for each cohort was therefore 13.



The normality of data was tested by a Shapiro–Wilk test, with p > 0.05 indicating normal distribution. Categorical variables were listed as number and percentage to total and compared using Fisher’s exact test (two-tailed). Continuous parametric variables were expressed as mean ± SD and compared using an independent-samples t test. Continuous nonparametric variables were expressed as median and interquartile range (Q1-Q3) and compared using the Mann-Whitney U test. A p value of <0.05 (two-tailed) was defined as statistically significant. Data collection was performed using commercial software (Office Excel version 16.29.1, Microsoft, Redmond [WA], US). Statistical analyses and graph plots were also performed on commercial software (SPSS Windows version 24.0; IBM Corp, Armonk [NY], US).



Forty-nine patients undergoing 50 PVE procedures were included in each cohort. Baseline characteristics are summarised in Table 1. There was no statistical difference in age, sex, MELD, or ALBI scores. The sheathless technique cohort showed significantly lower serum albumin, bilirubin, and INR levels (all p < 0.05), although all levels were within normal limits. There was a significantly lower proportion of hepatocellular carcinoma, higher proportion of cholangiocarcinoma and higher proportion of planned trisectionectomy (all p < 0.05). For the sheathless group, 38 patients (76%) required only a single puncture while the others (n = 12, 24%) required two punctures. None of the patients required three or more punctures.

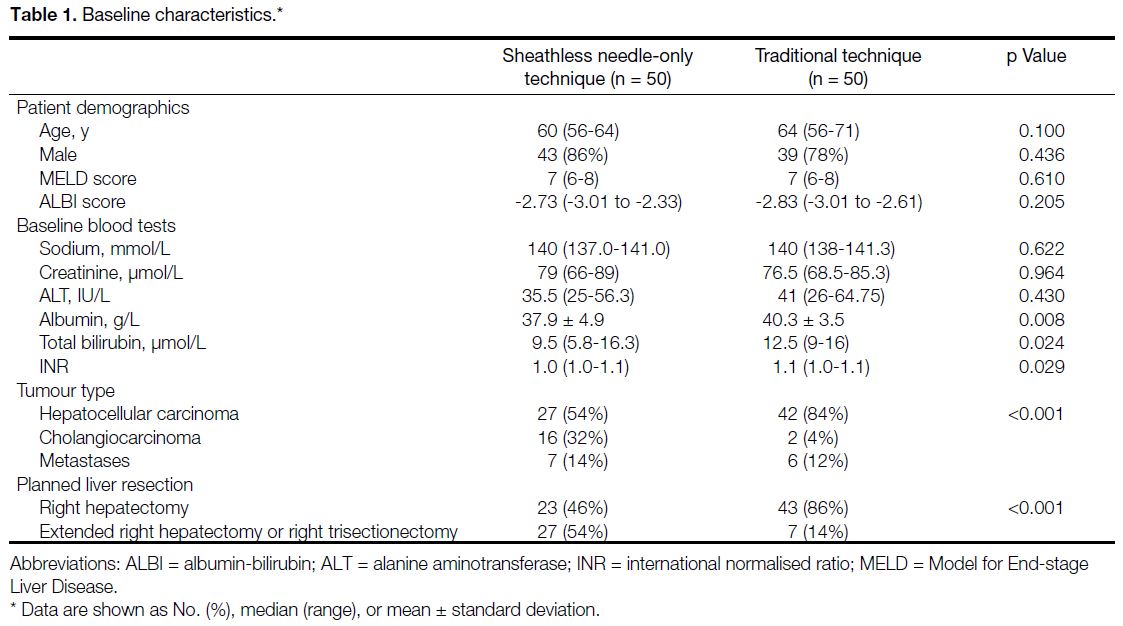

Table 1. Baseline characteristics.



Outcome measures are shown in Table 2. The sheathless technique cohort showed significantly shorter procedure time (24 min vs 85.5 min; p < 0.001) and a lower proportion of patients required procedural sedation (16% vs 78%; p < 0.001). There was no significant difference in technical success rate (p > 0.05). There was a comparable number of CT volumetry data sets available in the two cohorts, with no significant difference in absolute FLRV increase, absolute %FLRV increase, or percentage increase in %FLRV (p > 0.05) [Table 3 and Figure 5]. There was no significant difference in resection rate, minor complications, major complications, or 30-day mortality (p > 0.05).

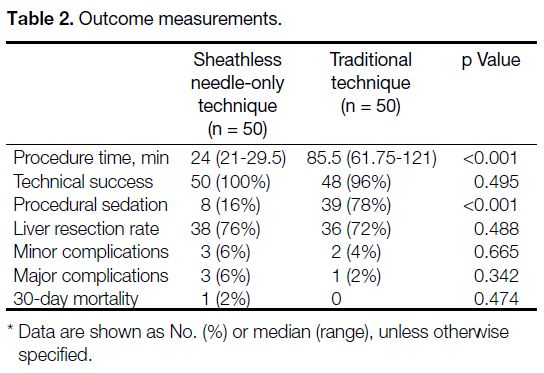

Table 2. Outcome measurements.

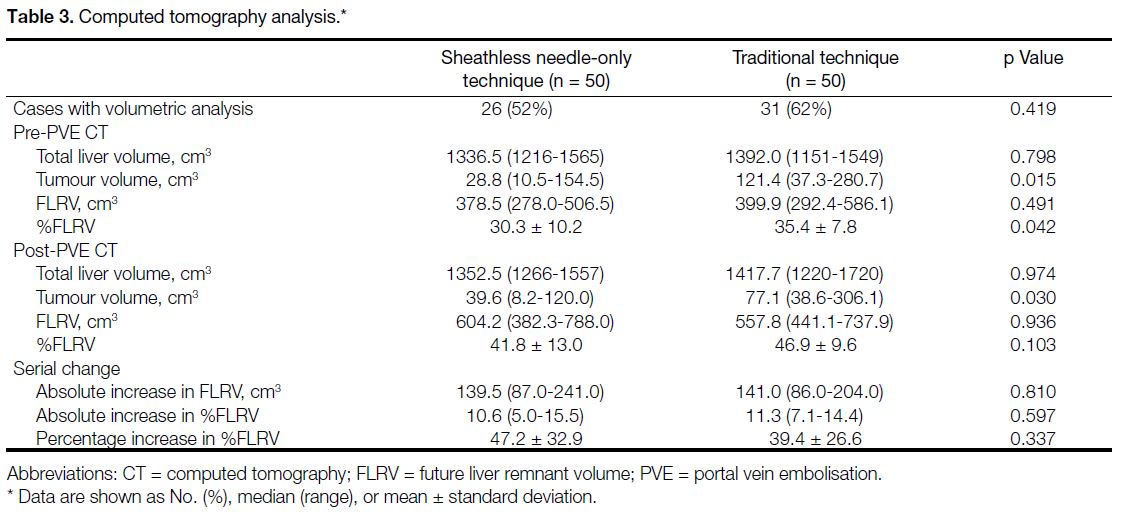

Table 3. Computed tomography analysis.

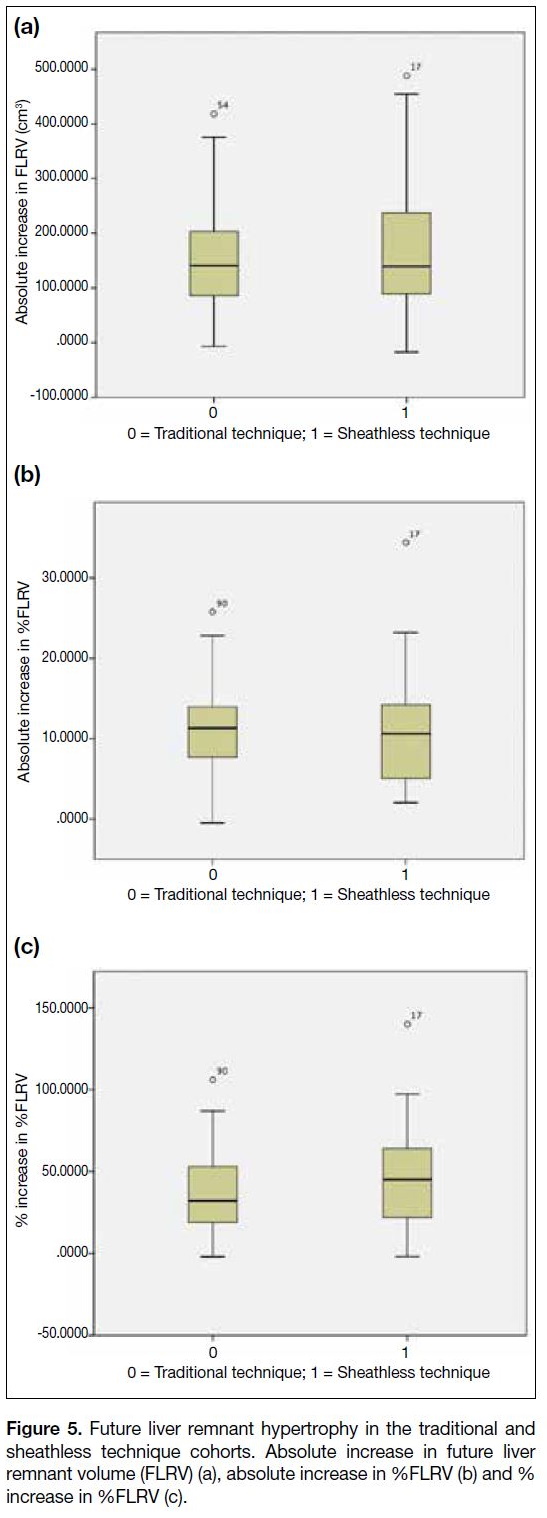

Figure 5. Future liver remnant hypertrophy in the traditional and sheathless technique cohorts. Absolute increase in future liver remnant volume (FLRV) (a), absolute increase in %FLRV (b) and % increase in %FLRV (c).



In the sheathless technique cohort, there were three major complications (6%). One patient with cholangiocarcinoma developed an infected right subphrenic collection after PVE, which resolved 4 days after percutaneous drainage, but was further complicated with cholangitic abscesses that were successfully managed conservatively with IV antibiotics. Resection was cancelled due to disease progression. In another patient with hepatocellular carcinoma, there was glue reflux into the common hepatic artery leading to infarction of the right posterior segment, which was resected during right hepatectomy. In one patient with cholangiocarcinoma, a glue cast migrated into the hepatic vein and right atrium, which was successfully captured and removed by inferior vena cava filter insertion, retrieval, and aspiration thrombectomy. This patient subsequently underwent right trisectionectomy uneventfully. There were three minor complications, all of which involved asymptomatic nonocclusive emboli in FLR detected on post-embolisation CT. Two of these patients underwent resection uneventfully, and the third did not undergo resection as a result of disease progression.



In the traditional technique cohort, there was one major complication (2%). A patient with cholangiocarcinoma developed a liver abscess and cholangitis a week after PVE, requiring intensive care unit admission and repeated percutaneous drainages. The patient later underwent hepatectomy uneventfully. There were two minor complications. In a patient with hepatocellular carcinoma, there was nontarget embolisation to a segmental pulmonary artery detected on cone beam CT upon completion of PVE and confirmed on CT pulmonary angiography. The patient remained asymptomatic, not requiring additional treatment, and was discharged on day 4, which only qualified as a minor complication according to Society of Interventional Radiology guidelines. Another patient with hepatocellular carcinoma was readmitted on day 2 for right upper quadrant pain, which was successfully managed conservatively.



There was only one case of 30-day mortality, specifically in the sheathless technique cohort, without statistically significant difference between the two cohorts. This patient had hepatocellular carcinoma on a background of multiple medical comorbidities including motor neuron disease, with an initially uneventful post-PVE recovery, but later presented on day 27 with a fall and head injury, with sudden asystole while still in the emergency department. No significant abnormality was found on CT of the brain or plain radiograph of the chest, including intracranial haemorrhage, airspace opacification, or inadvertent glue migration. Liver function tests were also normal. The patient succumbed on the same day after joint consensus of comfort care was made. The cause of mortality was presumed to be more likely related to the underlying motor neuron disease rather than as a consequence of PVE.



The sheathless technique was found to be a feasible alternative to the traditional technique in a previous study.[9] This study further confirmed its advantages in terms of shorter procedure time and a reduced need for sedation while maintaining similar efficacy and safety profiles. The traditional technique of PVE has a few obvious disadvantages. It requires placement of an access sheath, which is painful, and frequently requires sedation. Selective segmental catheterisation for portography and embolisation can also be tedious with significantly longer procedure times, up to 214 minutes in our series. This is likely also associated with higher radiation dose to the patient. Last but not least, tract embolisation also has to be performed. Complications of the traditional technique reported in the literature include bleeding, vascular or bile duct injury, pneumothorax, inadvertent embolisation of the FLR, and migration of embolic agents, among others.[16] [18] There were instances of nontarget embolisation in both of our series, without statistically significant differences. Specifically, this involved the hepatic vein and hepatic artery in the sheathless group, and probable hepatic vein followed by segmental pulmonary artery in the traditional group. This was likely due to either vascular shunts, which are common in hepatic malignancies, or inadvertent double puncture of the involved hepatic artery or hepatic vein, which is in theory equally likely in both techniques. The cases of minor asymptomatic FLR emboli in the sheathless group may be attributable to the more technically demanding nature of the sheathless technique, requiring a painstakingly careful steady injection and backflow of glue to the right PV in order to reach all the targeted right PV branches. Importantly, none of these complications was significant enough to preclude subsequent hepatectomy.



As shown in our results, the sheathless technique negates a few major drawbacks of the traditional technique in selected patients, while maintaining comparable outcomes and safety profile.



There are a few important technical issues. First, the pre-PVE CT should be carefully analysed for PV anatomy. This is especially important for the sheathless technique because the image quality of direct portography via the 18 G needle is not as good as via the access sheath or catheter in the traditional technique. Second, test runs using iodinated contrast should be performed before embolisation to estimate the optimal flow rate and volume, to avoid nontarget embolisation as well as premature polymerisation of the glue cast before it reaches all target PV branches. Third, in cases where PV anatomy is grossly distorted by tumour or with complex variant anatomy, the traditional technique probably remains the safer and more conservative approach.



The major limitation of this study is the separate patient cohorts for the two different techniques. There were statistically significant differences in the baseline serum albumin, bilirubin, and INR levels. Given that these parameters were within normal range, such a small difference might not be clinically significant. The sheathless technique cohort also contained significantly higher proportion of cholangiocarcinoma and planned trisectionectomy, as well as smaller tumour volume and %FLRV. These were likely due to different degree of utilisation of PVE in cholangiocarcinoma in different institutions. Although this may imply different prevalence of chronic hepatitis in the two cohorts, the degrees of liver derangement were comparable, as there was no significant difference in their MELD and ALBI scores. As such, the difference in tumour type in the two cohorts should not influence the outcome. The MELD[14] [19] and ALBI[15] scores were adopted in this study instead of Child–Pugh score, as the latter incorporates subjective factors such as presence of ascites and encephalopathy.



Another limitation is the limited generalisability of the results of the sheathless technique series, which was performed by one experienced operator in a tertiary academic institution. We do not have reference outcome measures of the traditional technique in this institution by this operator to compare with our control group, which was performed by multiple operators with varying levels of experience in another tertiary institution, and this may be a confounding factor. Undeniably, operator experience has significant bearings on both procedure time and utilisation of procedural sedation, while institutional differences likely also account for baseline differences such as tumour type, planned hepatectomy extent, procedural sedation protocol, etc. to name just a few. Due to this study’s retrospective nature, we were unable to standardise or control for these factors. CT volumetry data was also incomplete, as some patients received their CT in outside facilities.



In conclusion, the sheathless technique for PVE results in a shorter procedure time and reduced need for sedation compared with the traditional technique, with a comparable degree of FLR hypertrophy and complication rate.
