Radiological Findings in COVID-19 and Adaptive Approaches for Radiology Departments: Literature Review and Experience Sharing

SPECIAL ARTICLE AND INVITED REVIEW    CME

Hong Kong J Radiol 2020 Jun;23(2):72-83





¹ Department of Radiology, Princess Margaret Hospital, Laichikok, Hong Kong

² Department of Radiology and Organ Imaging, Queen Elizabeth Hospital, Jordan, Hong Kong

³ Department of Radiology, Queen Mary Hospital, Pokfulam, Hong Kong

⁴ Department of Imaging and Interventional Radiology, Prince of Wales Hospital, Shatin, Hong Kong

⁵ Department of Radiology, Tuen Mun Hospital, Tuen Mun, Hong Kong

⁶ Department of Radiology, Tseung Kwan O Hospital, Tseung Kwan O, Hong Kong

⁷ Department of Radiology, Pamela Youde Nethersole Eastern Hospital, Chai Wan, Hong Kong

⁸ Department of Diagnostic and Interventional Radiology, Kwong Wah Hospital, Yaumatei, Hong Kong

⁹ Department of Radiology, North District Hospital, Sheung Shui, Hong Kong

¹⁰ Department of Radiology, United Christian Hospital, Kwun Tong, Hong Kong



  Full Article in PDF

In late December 2019, the World Health Organization (WHO) was informed of a cluster of cases of pneumonia of unknown cause detected in Wuhan City, Hubei Province, China. Subsequent deep sequencing analysis from lower respiratory tract samples indicated a novel coronavirus as the causative organism. The International Committee on Taxonomy of Virus named the virus severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2).[1] In February 2020, the WHO officially named the disease coronavirus disease 2019 (COVID-19). The disease spread rapidly, resulting in an epidemic throughout China, followed by other countries around the world. On 11 March 2020, the WHO officially declared COVID-19 a pandemic.[2] According to data published by the WHO on 19 April 2020 (10:00 CEST), more than two million cases of COVID-19 have been confirmed worldwide, including more than 150 000 deaths from the disease.[3]



The diagnosis of SARS-CoV-2 infection largely depends on clinical and epidemiological history with subsequent laboratory confirmation by realtime reverse-transcription polymerase chain reaction (RT-PCR) tests. Radiological investigations also play an important role in the treatment course of patients with COVID-19. To provide radiologists with the latest information, herein we review the radiological investigations and imaging features of COVID-19 and share the experiences of radiology departments in Hong Kong.



Plain chest radiography (CXR) is readily available and is commonly performed in patients presenting with respiratory symptoms of various causes. In patients with COVID-19, an initial CXR helps not only to detect features of pneumonia, but also to identify or rule out differential diagnoses, such as pneumothorax or heart failure. In countries facing resource constraints with limited availability and long turnaround time of RT-PCR tests, CXR is recommended for medical triage of patients who present with moderate to severe clinical features and a high pre-test probability of COVID-19.[4]



Depending on the clinical setting and time of presentation, CXR abnormalities are reported in 33.3% to 95% of patients with COVID-19.[5] [6] [7] [8]] [9] [10] In a study on 64 patients with RT-PCR-confirmed SARS-CoV-2 infection from four hospitals in Hong Kong, 69% of patients demonstrated abnormalities on baseline CXR, with 80% of patients exhibiting CXR abnormalities at some point during their disease course.[7] Because the sensitivity of CXR could be related to the time of imaging and severity of pulmonary involvement, a normal CXR cannot exclude the diagnosis of COVID-19 (Figure 1a).

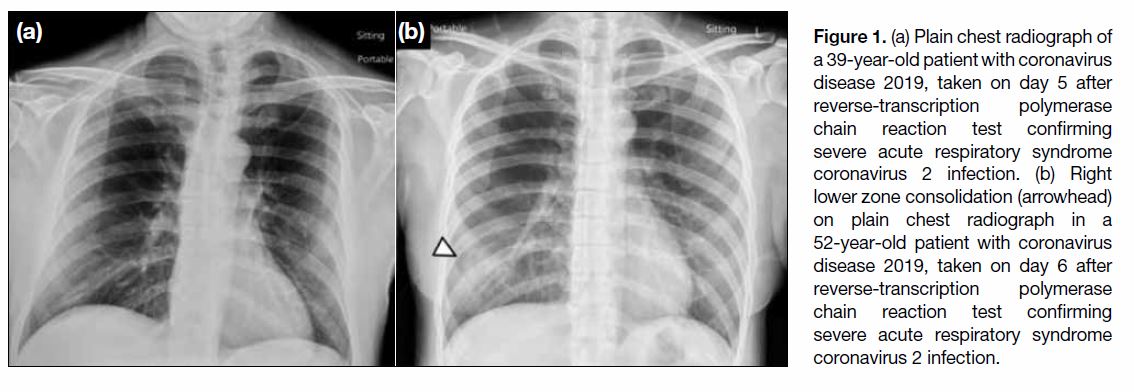

Figure 1. (a) Plain chest radiograph of a 39-year-old patient with coronavirus disease 2019, taken on day 5 after reverse-transcription polymerase chain reaction test confirming severe acute respiratory syndrome coronavirus 2 infection. (b) Right lower zone consolidation (arrowhead) on plain chest radiograph in a 52-year-old patient with coronavirus disease 2019, taken on day 6 after reverse-transcription polymerase chain reaction test confirming severe acute respiratory syndrome coronavirus 2 infection.



For patients with confirmed SARS-CoV-2 infection, CXR has the advantage of being portable for imaging within the isolation rooms, thereby reducing the risk of disease transmission during patient transportation. Portable CXR is invaluable to assess disease progression and rule out complications. However, in patients with confirmed SARS-CoV-2 infection, CXR should only be performed when there is appropriate clinical need, such as when there is clinical deterioration, rather than as a daily routine. Avoidance of non–value-added imaging is particularly important in patients with COVID-19, to minimise radiation exposure, to reduce the risk of disease transmission to radiographers, and to conserve personal protective equipment.



The most common findings on CXR are consolidation and ground-glass opacities (GGOs), found more often in a bilateral, peripheral, and lower zone distributions (Figure 1b).[5] [7] Pleural effusion is uncommon, found only in 3% of patients.[7] A study in Hong Kong found that CXR findings reach peak severity at 10 to 12 days from symptom onset (Figure 2).[7] This is in concordance with the earlier peak severity at 6 to 11 days from symptom onset,[11] reported for computed tomography (CT), which is more sensitive. This is also in concordance with the clinical course; sepsis and acute respiratory distress syndrome have been found to occur at 9 to 12 days from symptom onset.[12] Nevertheless, CXR findings in COVID-19 are not organism-specific and can overlap with other viral infections including influenza, severe acute respiratory syndrome (SARS), and Middle East respiratory syndrome (MERS). Furthermore, co-infection with other respiratory pathogens can occur in patients with confirmed SARS-CoV-2 infection.[13]

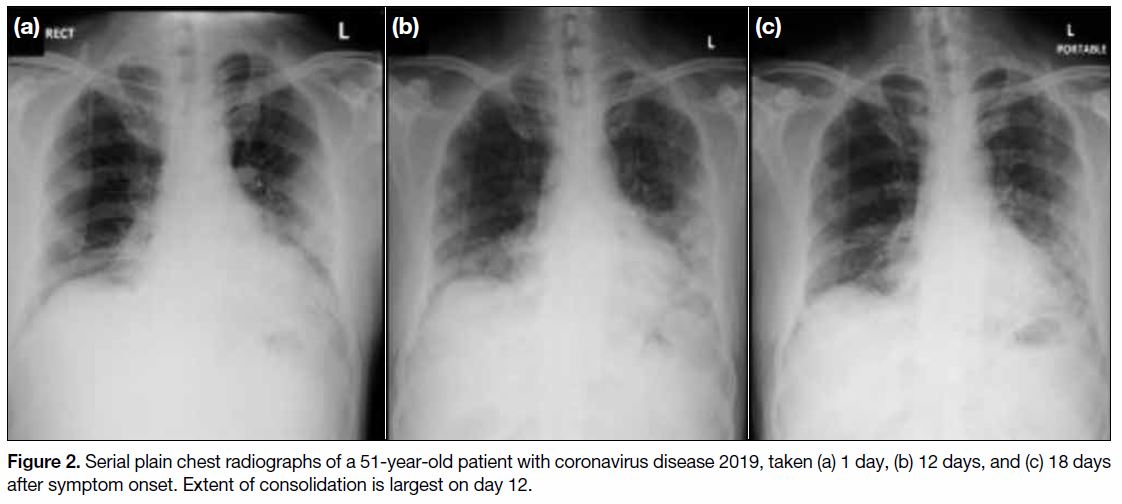

Figrue 2. Serial plain chest radiographs of a 51-year-old patient with coronavirus disease 2019, taken (a) 1 day, (b) 12 days, and (c) 18 days after symptom onset. Extent of consolidation is largest on day 12.



Compared with CXR, chest CT is less readily available and results in greater radiation exposure. Nevertheless, it provides superior delineation of the pulmonary involvement caused by COVID-19. Chest CT is reported to have higher sensitivity for the diagnosis of SARS-CoV-2 infection when compared with initial RT-PCR test results. The sensitivity of chest CT has been reported in various studies as 98%, 97%, 93%, and 61%.[14] [15] [16] [17] However, chest CT has limited specificity as low as 25%,[15] and should not be used as the sole method for the diagnosis of COVID-19. Discordance between results of RT-PCR and chest CT is commonly encountered and may lead to diagnostic confusion.[18] [19] A multidisciplinary approach, involving a combination of clinical history, clinical manifestations, imaging features, and laboratory results, is therefore desirable to achieve a timely and accurate diagnosis. According to a multinational consensus statement from the Fleischner Society, chest CT is not routinely indicated as a screening test for COVID-19 in asymptomatic individuals. Imaging is also not indicated for patients with mild features of COVID-19, unless they are at risk for disease progression. In contrast, chest CT is indicated for patients showing worsening respiratory status and/or moderate to severe features of COVID-19.[4]



CT scans can be used to evaluate complications related to COVID-19. Pleural effusion, multiple tiny pulmonary nodules, and mediastinal lymphadenopathy are atypical in COVID-19 pneumonia and their appearance should raise concern for bacterial superinfection or alternative diagnosis.[20] In addition, CT can readily detect other complications especially in patients with COVID-19 who have been admitted under intensive care unit, to confirm or rule out pulmonary embolism during the acute setting.



The cardinal hallmark of COVID-19 pneumonia on chest CT is bilateral GGOs with or without consolidation in peripheral and posterior lungs (Figures 3 and 4).[11] [21] The GGOs often have rounded morphology (Figure 5) or are present with interlobular septal thickening and intralobular lines creating a “crazy-paving” pattern (Figure 6).[20] GGO together with small areas of consolidation may suggest an organising pneumonia pattern of lung injury.[21]

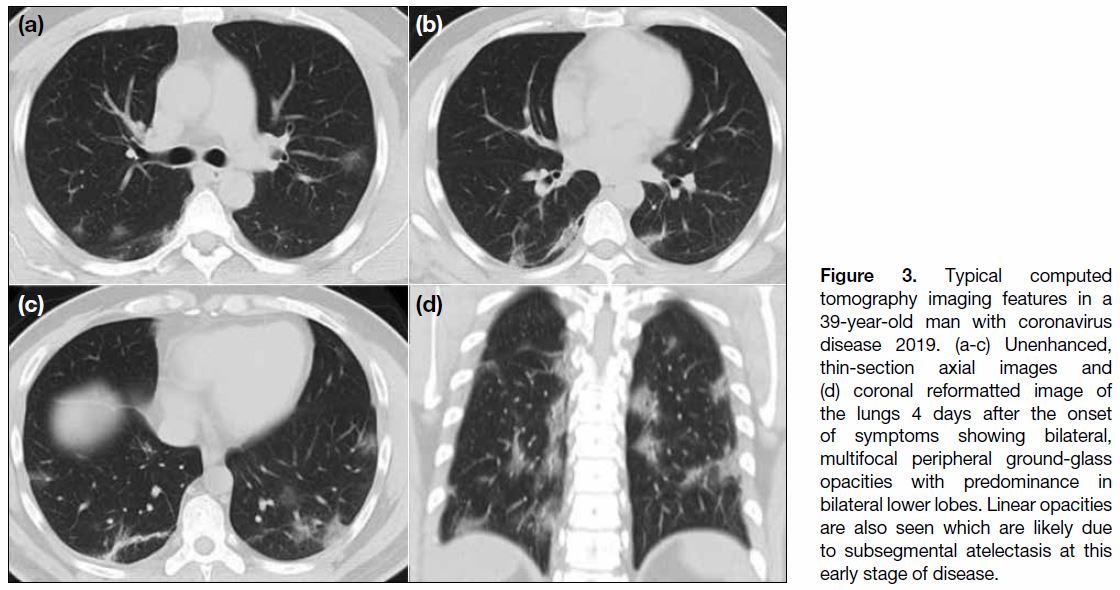

Figure 3. Typical computed tomography imaging features in a 39-year-old man with coronavirus disease 2019. (a-c) Unenhanced, thin-section axial images and (d) coronal reformatted image of the lungs 4 days after the onset of symptoms showing bilateral, multifocal peripheral ground-glass opacities with predominance in bilateral lower lobes. Linear opacities are also seen which are likely due to subsegmental atelectasis at this early stage of disease.

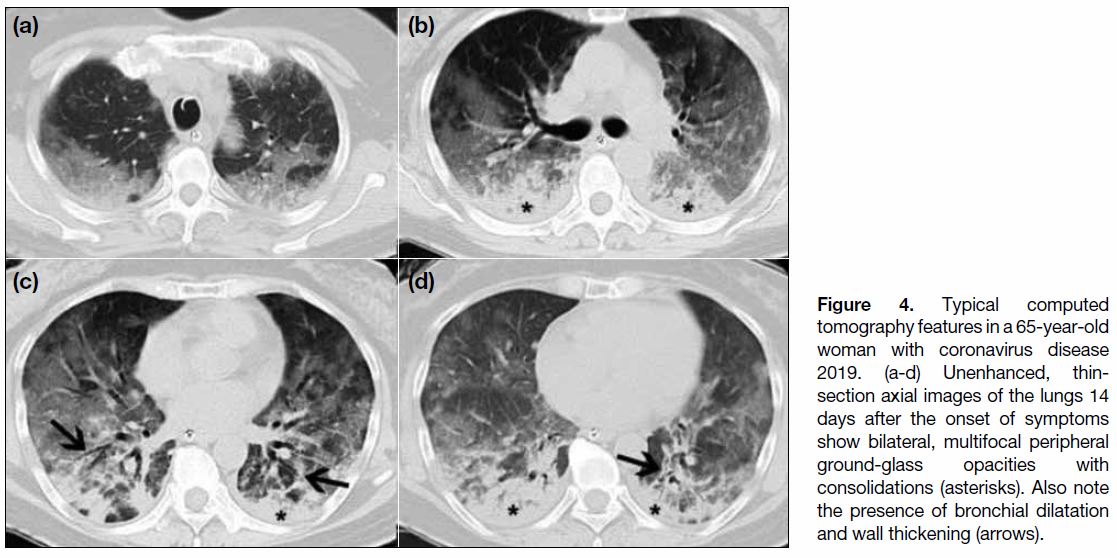

Figure 4. Typical computed tomography features in a 65-year-old woman with coronavirus disease 2019. (a-d) Unenhanced, thin-section axial images of the lungs 14 days after the onset of symptoms show bilateral, multifocal peripheral ground-glass opacities with consolidations (asterisks). Also note the presence of bronchial dilatation and wall thickening (arrows).

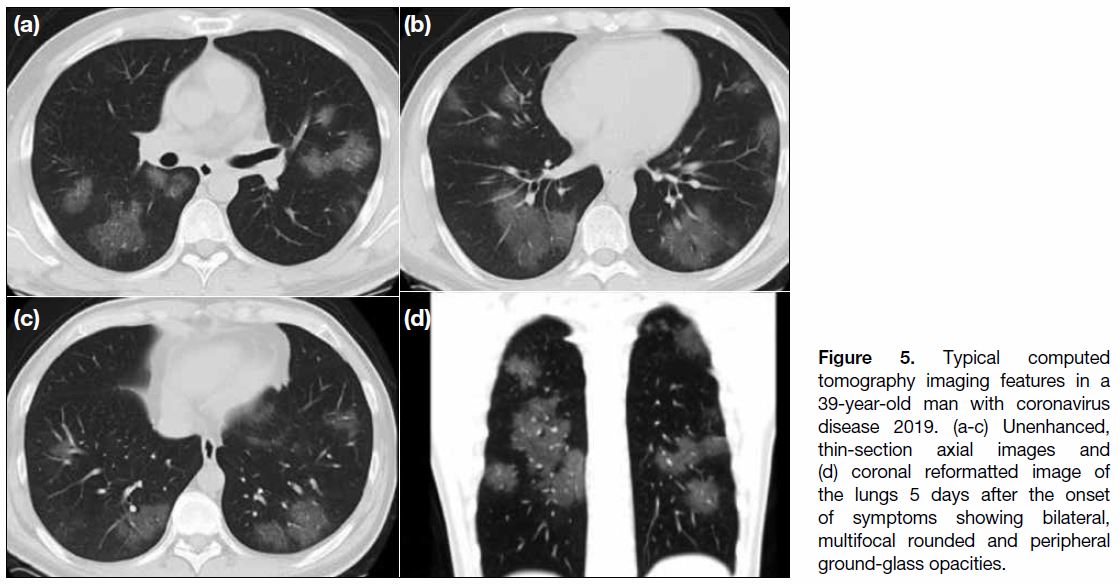

Figure 5. Typical computed tomography imaging features in a 39-year-old man with coronavirus disease 2019. (a-c) Unenhanced, thin-section axial images and (d) coronal reformatted image of the lungs 5 days after the onset of symptoms showing bilateral, multifocal rounded and peripheral ground-glass opacities.

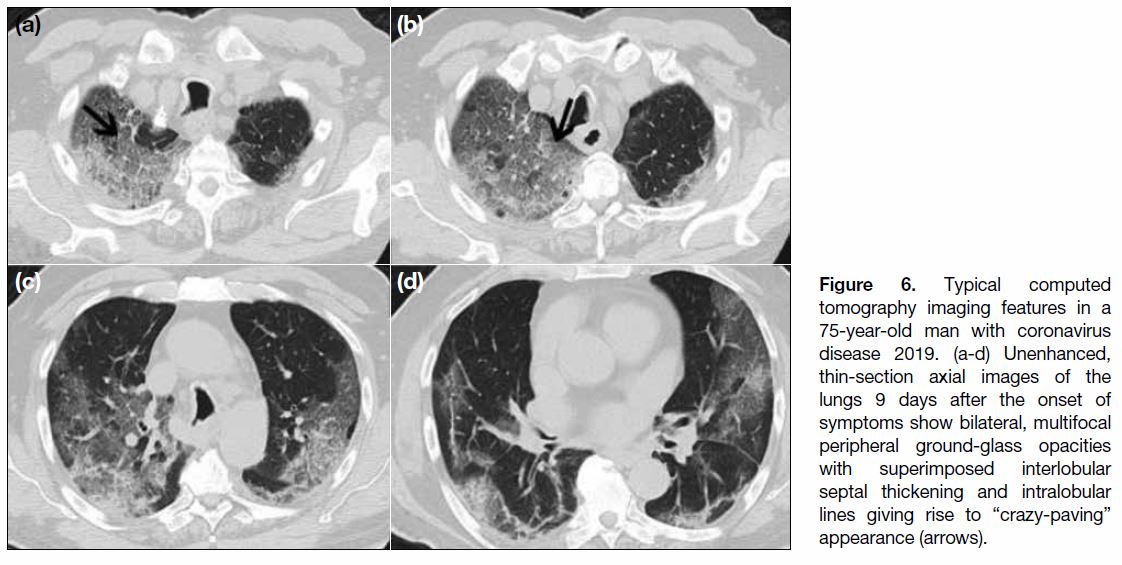

Figure 6. Typical computed tomography imaging features in a 75-year-old man with coronavirus disease 2019. (a-d) Unenhanced, thin-section axial images of the lungs 9 days after the onset of symptoms show bilateral, multifocal peripheral ground-glass opacities with superimposed interlobular septal thickening and intralobular lines giving rise to “crazy-paving” appearance (arrows).



Aligned by the Hong Kong College of Radiologists and with the cooperative effort of all radiology centres managed by the Hong Kong Hospital Authority, chest CT images of patients with confirmed SARS-CoV-2 infection scanned from 22 January 2020 to 16 April 2020 in six public hospitals in Hong Kong were reviewed by qualified radiologists of the Hong Kong College of Radiologists (Table 1). Total 110 patients with RT-PCR-confirmed SARS-CoV-2 infection were included in this evaluation, 97 (88.2%) of whom had abnormal findings on their first chest CT after admission. Among the radiological findings, GGO (Figures 3 4 5 6 7) was the most common, occurring in 95 (97.9%) patients. Consolidation (Figure 4) was recorded in 57 (58.8%) patients, septal thickening in 28 (28.9%) patients, and reticular/linear densities in 18 (18.6%) patients. Bronchial wall thickening and dilatation (Figure 4) were less common, present in 13 (13.4%) patients. Reticulonodular opacities and nodules were rare, and were found in the same one (1.0%) patient. None of the patients had nodules with cavitation. In terms of lesion distribution, 94 (96.9%) patients had predominantly peripheral distribution, 77 (79.4%) patients had bilateral involvement, and 80 (82.5%) patients had multilobar involvement. Other imaging findings were considered atypical, such as pleural effusion in one (1.0%) patient and mediastinal lymphadenopathy in one (1.0%) patient. The observed imaging findings and patterns are consistent with the results from other published studies.[11] [15] [17] [18] [19]

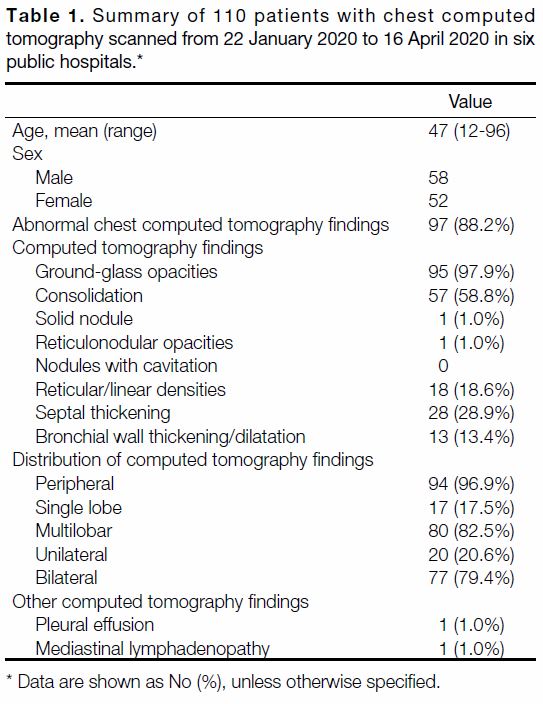

Table 1. Summary of 110 patients with chest computed tomography scanned from 22 January 2020 to 16 April 2020 in six public hospitals.

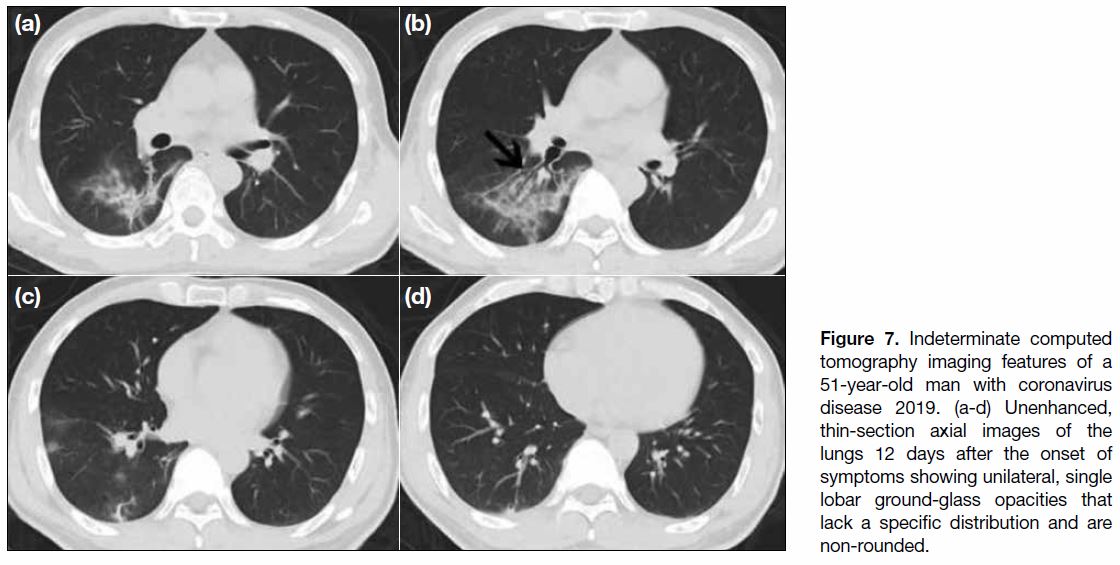

Figure 7. Indeterminate computed tomography imaging features of a 51-year-old man with coronavirus disease 2019. (a-d) Unenhanced, thin-section axial images of the lungs 12 days after the onset of symptoms showing unilateral, single lobar ground-glass opacities that lack a specific distribution and are non-rounded.



In March 2020, the Radiological Society of North America proposed, with endorsement by the Society of Thoracic Radiology and American College of Radiology, structured CT reporting for patients with COVID-19 pneumonia in order to disseminate common findings of the disease and decrease reporting variability.[20] Findings are classified into four categories: (1) typical appearance with (i) peripheral, bilateral GGOs with or without consolidation or intralobular lines (“crazy-paving” pattern), or (ii) multifocal GGOs of rounded morphology with or without consolidation or intralobular lines, or (iii) reverse halo sign or other findings of organising pneumonia; (2) indeterminate appearance with multifocal, diffuse, perihilar, or unilateral GGOs with or without consolidation lacking a specific distribution or few small GGOs that are non-rounded or non-peripheral; (3) atypical appearance; and (4) negative for pneumonia.



Based on this the Radiological Society of North America proposed reporting language for COVID-19 pneumonia, the majority of our patients had typical (69%) or at least indeterminate appearances (18%) on chest CT, whereas few had atypical appearance (0.9%) or were negative for pneumonia (11.8%) [Table 2[20]].

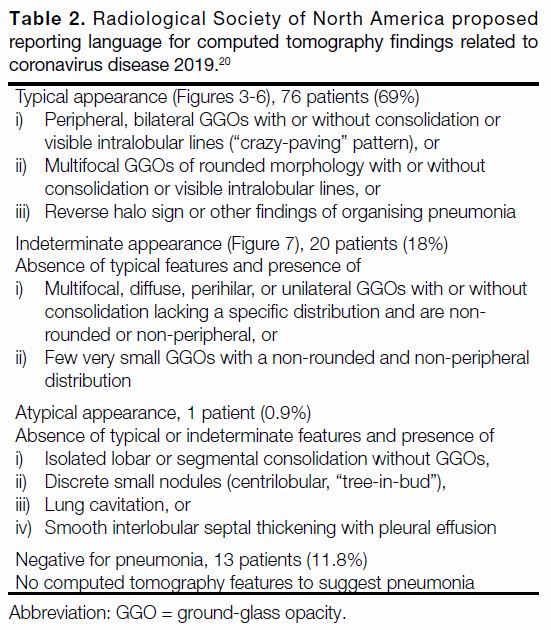

Table 2. Radiological Society of North America proposed reporting language for computed tomography findings related to coronavirus disease 2019.[20]



When necessary, serial chest CT can reflect disease evolution and monitor treatment effects.[22] In patients with COVID-19 who deteriorate, initial findings of small GGOs on chest CT become more extensive, and might grow larger with crazy-paving patterns and consolidation.[22] [23] [24] In severe and critical patients, the occurrence rates of consolidation, linear opacities, crazypaving, and bronchial thickening increase, as well as the extent of lung involvement.[23] Eventually the disease proceeds to ‘white lung’ appearance, seriously affecting the patient’s lung function.[24]



For patients who eventually recover from pneumonia, the most severe features are found on CT imaging at approximately 10 days after the initial onset of symptoms. At approximately 14 days, radiological signs of improvement are seen.[22] Ai et al[15] observed that chest CT improvement precedes negative RT-PCR test results in some patients.



Recent studies have revealed that COVID-19 shares similar CT features with organising pneumonia, most notably atoll signs and peripheral multilobar GGOs. Such similarities suggest the presence of secondary organising pneumonia in some patients with COVID-19. Secondary organising pneumonia was also documented in viral pneumonia caused by SARS-CoV, MERS-CoV, and influenza. Future histological correlations are required to confirm these associations. Because a small proportion of patients with organising pneumonia progress to pulmonary fibrosis (fibrosing organising pneumonia), follow-up CT imaging may be advisable for patients showing features of organising pneumonia. Organising pneumonia can be effectively managed by corticosteroids to prevent progression to fibrosis.[25]



According to a multinational consensus statement from the Fleischner Society, follow-up CT imaging is indicated for patients with functional impairment and hypoxaemia after recovery from COVID-19. The purpose of the follow-up CT imaging is to differentiate between causes for such pulmonary function impairment after recovery, whether it is due to sequelae of infection and mechanical ventilation or from a potentially treatable cause (e.g., organising pneumonia as mentioned above).[4]



As stated above, not all patients with COVID-19 will undergo follow-up CT imaging. A single-centre review on the features of follow-up chest CT imaging revealed that among 70 patients who had chest CT scan after confirmation of SARS-CoV-2 infection, and 15 patients had a second chest CT scan. The mean (±standard deviation) interval of the second chest CT after the first positive RT-PCR test was 21.9±5.8 days. The mean interval between the first and second CT scan was 18.1±5.4 days. The mean age of the patients was 56.1±16.7 years. All patients had GGOs and consolidative changes with peripheral distribution on the initial scan. One (6.7%) patient had complete resolution on the second CT, whereas other patients showed varying degrees of interval reductions in the GGOs and consolidative changes. All patients who underwent serial CT scans survived and were subsequently discharged home. Two patients underwent a third chest CT scan. One of them demonstrated features of secondary organising pneumonia (Figure 8). The other showed complete resolution on the third CT scan (Figure 9).

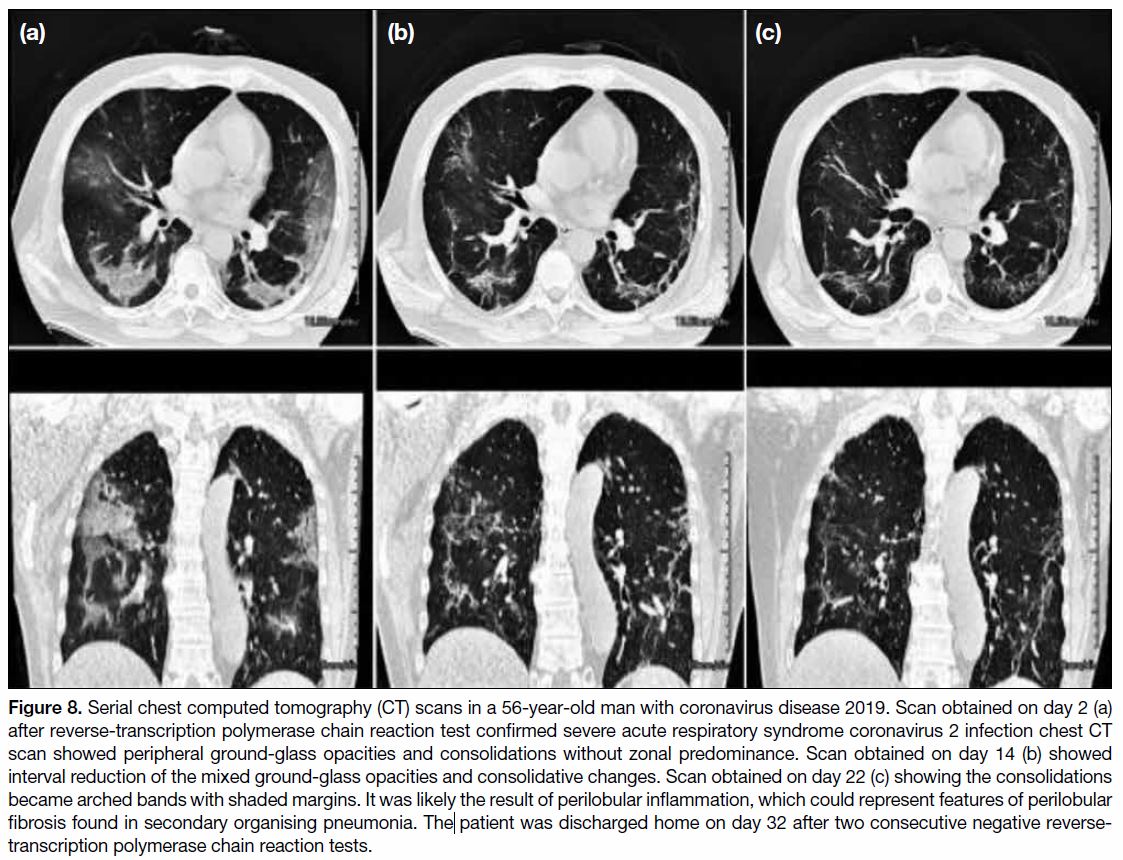

Figure 8. Serial chest computed tomography (CT) scans in a 56-year-old man with coronavirus disease 2019. Scan obtained on day 2 (a) after reverse-transcription polymerase chain reaction test confirmed severe acute respiratory syndrome coronavirus 2 infection chest CT scan showed peripheral ground-glass opacities and consolidations without zonal predominance. Scan obtained on day 14 (b) showed interval reduction of the mixed ground-glass opacities and consolidative changes. Scan obtained on day 22 (c) showing the consolidations became arched bands with shaded margins. It was likely the result of perilobular inflammation, which could represent features of perilobular fibrosis found in secondary organising pneumonia. The patient was discharged home on day 32 after two consecutive negative reverse-transcription polymerase chain reaction tests.

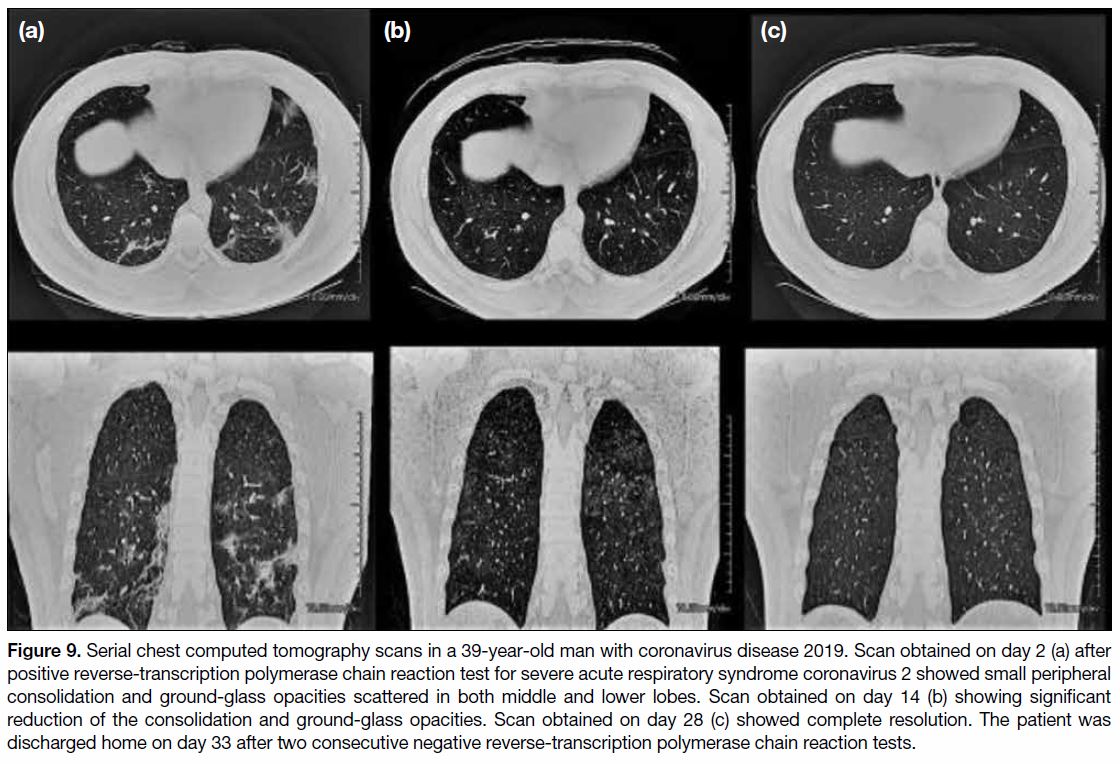

Figure 9. Serial chest computed tomography scans in a 39-year-old man with coronavirus disease 2019. Scan obtained on day 2 (a) after positive reverse-transcription polymerase chain reaction test for severe acute respiratory syndrome coronavirus 2 showed small peripheral consolidation and ground-glass opacities scattered in both middle and lower lobes. Scan obtained on day 14 (b) showing significant reduction of the consolidation and ground-glass opacities. Scan obtained on day 28 (c) showed complete resolution. The patient was discharged home on day 33 after two consecutive negative reverse-transcription polymerase chain reaction tests.



A recent report by Wang et al[25] found that the majority of patients discharged home had residual disease on final CT scans. The number of days from symptom onset to discharge was median 24 days (range, 10-44 days). The CT changes peaked during illness days 6 to 11 after symptom onset. The increase in GGOs observed on serial scans by Wang et al[25] was not observed in our reviewed patients, which could be related to the longer median interval between scans of 17 days (range, 11-32 days) versus 6 days (range, 2-19 days).



The COVID-19 pandemic in 2020, SARS outbreak in 2003, and MERS outbreak in 2012, are all caused by viruses belonging to the same Coronaviridae family. It is understandable that they can mimic each other on clinical grounds. Radiologically they share some common features but also have noticeable differences.



In the largest series of COVID-19 patients in China, abnormalities on radiographs were detected in up to 59.1% of patients at presentation.[26] This is less than the reported radiographic detection rate of SARS and MERS (about 83%).[27] [28] Among patients with radiological abnormalities, the distribution of changes most commonly involves the peripheral part of the lungs for all three infectious conditions. Unilateral abnormalities are more common in SARS and MERS than in COVID-19, where changes more frequently involve both lungs. Progression from focal unilateral peripheral lung involvement to bilateral multifocal lesions with upper lobes and perihilar involvement are associated with poor prognosis of severe cases in SARS (Figure 10) and MERS, whereas the prognostic value of radiographic changes remains unclear for COVID-19.

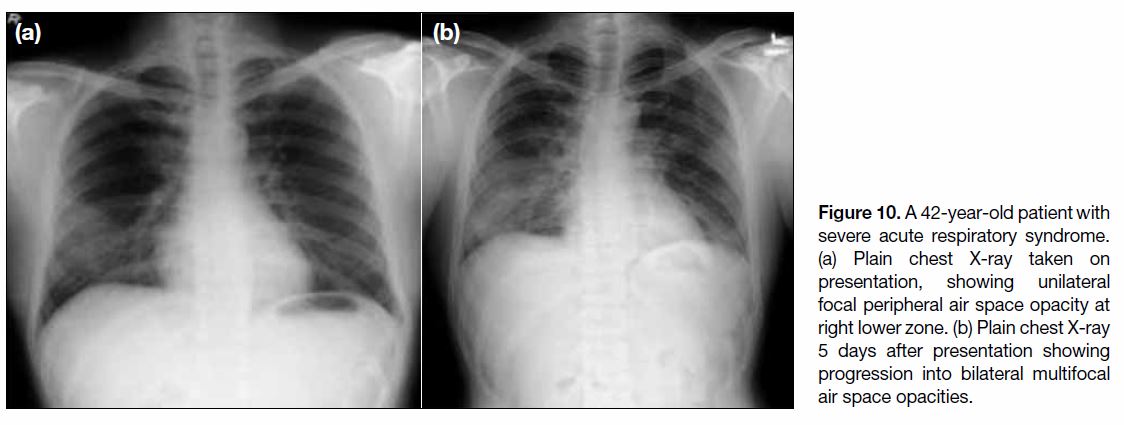

Figure 10. A 42-year-old patient with severe acute respiratory syndrome. (a) Plain chest X-ray taken on presentation, showing unilateral focal peripheral air space opacity at right lower zone. (b) Plain chest X-ray 5 days after presentation showing progression into bilateral multifocal air space opacities.



As with all viral pneumonias, the possible radiological patterns of parenchymal lung changes of these coronavirus infections are very similar. These include GGOs, consolidation, or a mixture of both. On CT imaging, interlobular septal thickenings and intralobular lines within the parenchymal changes are also well-described features, with possible progression into a crazy-paving pattern.[27] [29]



It is also important to consider the important negative radiological findings of these infections. Cavitation, centrilobular nodules, mediastinal or hilar lymphadenopathy, and pleural effusion are not typical features in COVID-19 and SARS.[29] In patients with MERS, pleural effusion was common (33%) and is reported to be associated with poorer prognosis.[27]



In long-term follow-up imaging for SARS patient with pneumonia, areas of air trapping due to damaged ciliated respiratory epithelium and lung fibrosis have been reported.[30] Likewise, fibrosis is a relatively common (33%) feature among survivors of MERS.[27] As it has only been a few months since COVID-19 was first reported, the long-term lung changes remain to be investigated with longer follow-up.



Recently, Li et al[31] reported a deep-learning algorithm which can detect COVID-19 on chest CT images and differentiate it from community-acquired pneumonia. Covering up to 4000 multicentred chest CT examinations, this algorithm generated promising per-examination sensitivity and specificity of 90% and 96%, respectively, with an average test time of 4.5 s.



Artificial intelligence algorithms have assisted in early warning, diagnosing, triaging patients, and monitoring treatment response. For example, RADLogics allows quantification of opacities and provides a scoring system for patients with COVID-19 that correlates with disease severity.[32] The Dutch University of Delft triages patients with COVID-19 based on CXR findings.[33] For artificial intelligence to be an effective tool in responding to the COVID-19 pandemic, high-quality large population-based datasets and worldwide concerted efforts are required for further development.



The first confirmed case of SARS-CoV-2 infection in Hong Kong occurred on 23 January 2020 and the Hospital Authority raised the response level in public hospitals from “Serious” to “Emergency” on 25 January 2020.[34] The first 20 patients with confirmed SARS-CoV-2 infection in Hong Kong were treated in an Infectious Disease Centre (IDC). Subsequent patients were treated in various acute public hospitals in the territory.



Modification and adaptation of the radiology department is essential in response to the COVID-19 pandemics.[35] [36] High-level infection control measures were implemented in radiology departments throughout Hong Kong. All patients with suspected and confirmed SARS-CoV-2 infection were treated in isolation wards in the IDC. Imaging facilities were provided in the IDC, including general radiography, CT, ultrasonography, and portable C-arm radiography. The examination rooms were equipped with negative pressure to prevent the spread of infection. Most radiological examinations and procedures could be performed in the IDC without the need to transport the patient to main radiology department, thus reducing the risk of cross-infection. Portable radiographs were taken in the isolation wards with designated gown up and gown down areas for radiographers. The chest CT scans of patients with COVID-19 were grouped together in specific sessions with allowance of air exchange time (15 minutes for IDC CT with air change rate of 12 ACH; 30 minutes for main CT with air change rate of 6 ACH) and room decontamination time between each patient.



Infection control measures were also implemented in the main radiology departments, including temperature screening of outpatients at hospital or department entrances and mask wearing for all patients, visitors, and staff. The radiological appointments for patients with COVID-19 awaiting RT-PCR results were deferred until the results were available. For patients with confirmed SARS-CoV-2 infection requiring radiological examinations for various clinical indications, CT was the preferred modality, rather than ultrasonography, owing to the shorter examination time and lower degree of physical contact between staff and patient.



Radiology service prioritisation, re-organisation, and manpower re-deployment were initiated to enhance the care of patients with COVID-19 in terms of imaging diagnosis, assessment of disease severity, and monitoring of progress and complication, as well as to maintain other essential diagnostic and interventional radiology services. This was achieved by rescheduling outpatient elective appointments and deploying more manpower to perform inpatient and urgent reporting and interventional procedures to speed up patient discharge. Examinations with higher risks such as barium enema and modified barium swallow were suspended or reduced. Face-to-face clinical radiological meetings and educational meetings were suspended and replaced by video conferencing, email, or telephone discussion. Some radiology departments also segregated radiologists and radiographers into "clean" and "dirty" teams (“dirty” being the colloquial term for “high risk for potential contamination or exposure to COVID-19”) to limit cross-infection.



Staff training and engagement in infection control was another key measure. Personal infection prevention measures such as social distancing and vigilant handwashing were advocated. There was close liaison between the radiology department and the infection control team to ensure the adequate supply and distribution of personal protective equipment, enhancing infection control and staff morale. Timely communication with staff and other stakeholders including hospital management and infection control team was mediated through emails and social media apps to provide knowledge sharing and updates on information and policies.[37] [38]



Radiological investigations play an important role in the diagnosis and management of COVID-19. The main imaging features on CXR include consolidation and GGOs, more often found in a bilateral, peripheral, and lower zone distribution. Compared with CXR, chest CT is more sensitive and provides superior delineation of the pulmonary involvement. The typical imaging findings of COVID-19 on chest CT are bilateral peripheral distribution of GGOs with or without consolidation. Interlobular septal thickening and intralobular lines creating a “crazy-paving” pattern may also be seen. In contrast, pleural effusion, lymphadenopathy and lung nodules are considered atypical. As it has only been a few months since the first case of COVID-19 was reported, further follow-up would be necessary to delineate the long-term radiological outcome in recovered patients with COVID-19.



Radiology departments of the public health sector have made adaptations and enhanced infection control. As more experience is accumulated, we are confident that radiology departments will continue to function well and assist the whole medical profession to respond to the COVID-19 pandemic.
